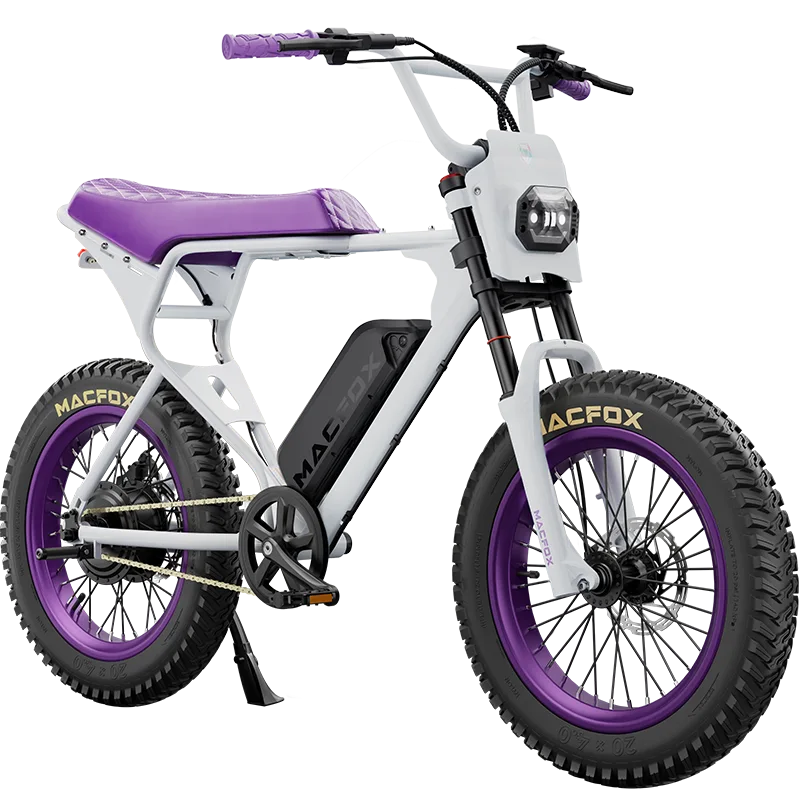

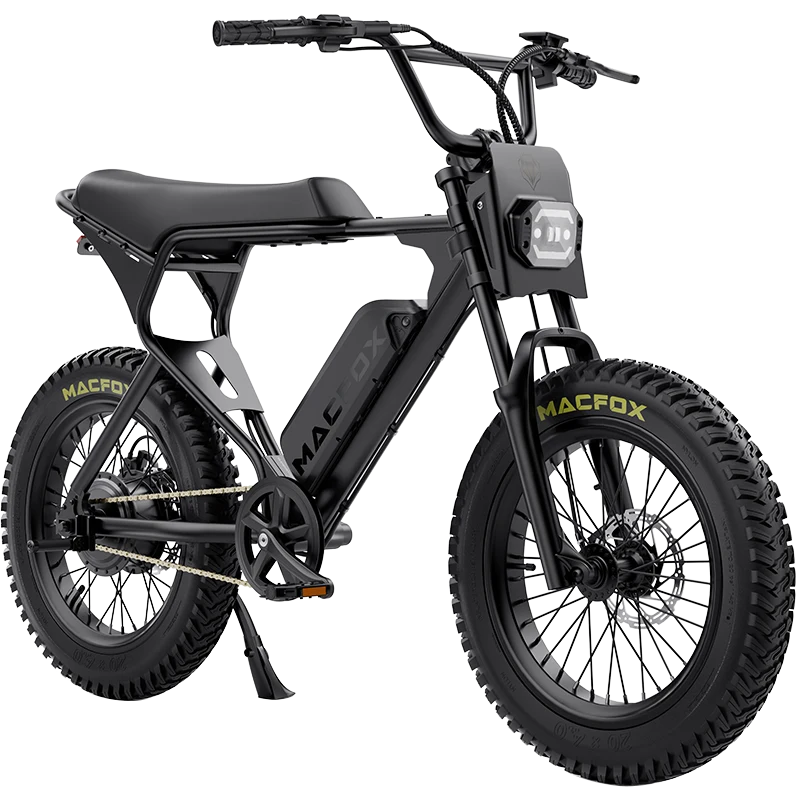

Macfox X1S Commuter Ebike

Key Features

• Full-Size Ride: Featuring a 71" length and a 33" seat height, designed for taller riders seeking a commanding view of the road.
• Consistent Performance: The 500W motor (750W Peak) delivers a reliable 20mph top speed for urban adventures.
• Hydraulic Stopping Power: Premium hydraulic disc brakes provide superior, effortless braking in all weather conditions.
• All-Terrain Stability: Equipped with 20" x 4.0" fat tires and front suspension for a smooth, stable ride on various surfaces.
• Balanced Range: Efficient 48V 10.4Ah battery provides a versatile range of 28–56 miles per charge.

---

Technical Specifications

Top Speed	20 mph
Range	28–56 miles
Motor / Peak Power	500W / 750W
Battery	500Wh (48V 10.4Ah)
Charge Time	5–6 hours
Brakes	Hydraulic Disc Brakes
Tires	20" x 4.0" Fat Tires
Vehicle Weight	65 lbs
Weight Limit	220 lbs
Dimensions (L*W*H)	71" x 27" x 42"

---

Sizing & Fit Guide

Seat Height	33"
Recommended Rider Height	5'3" and up

Standard Package: 1x Macfox Electric Bike 1x Headlight 1x Taillight 1x Battery 1x Charger 1x Installation Tools 1x User Manual Optional accessories (not included): Bag One extra battery Fender
