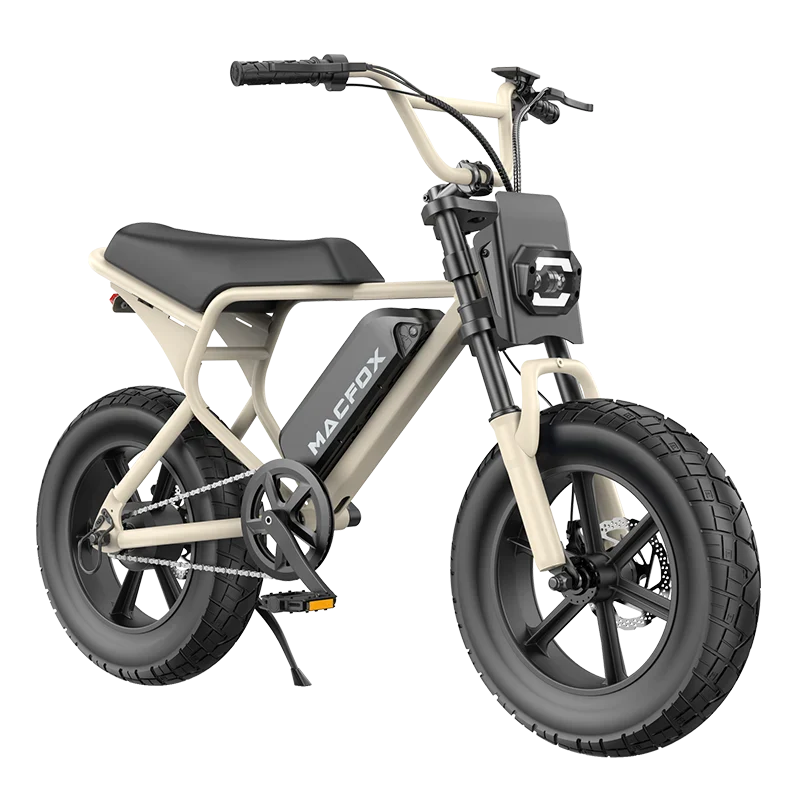

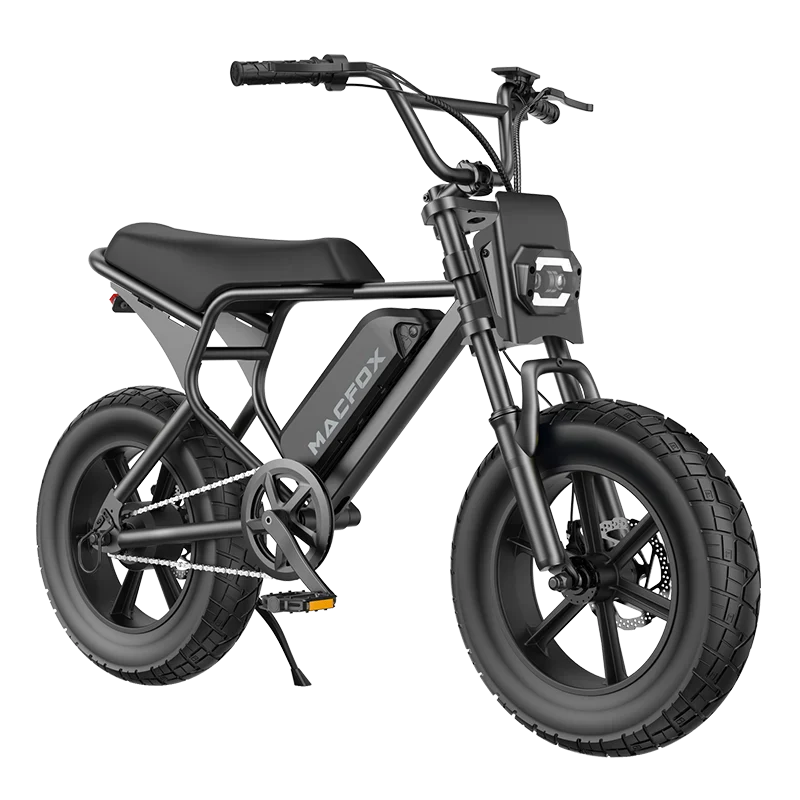

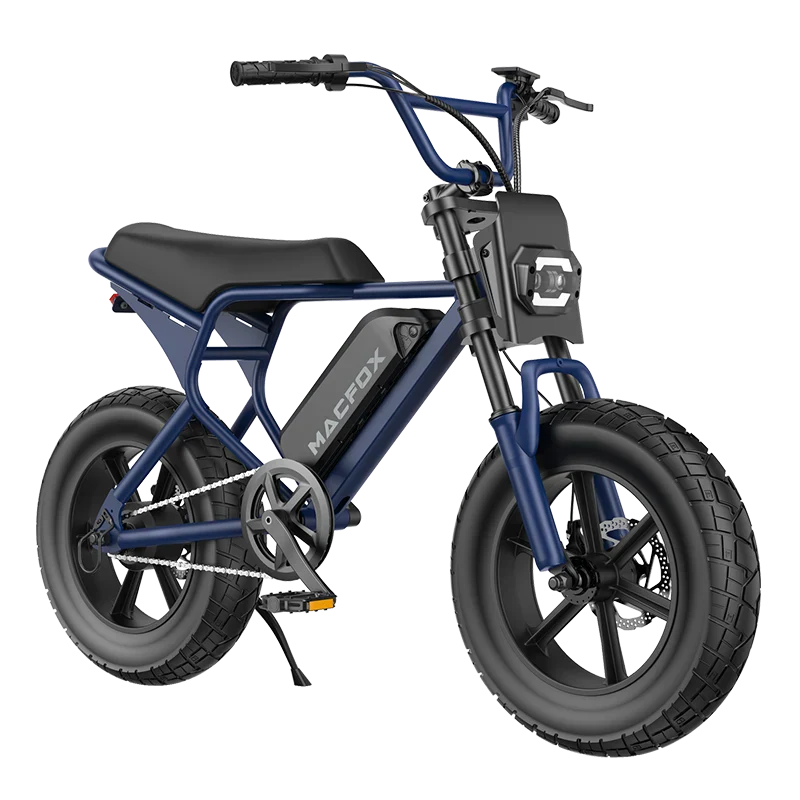

Macfox E-bike M16

Key Features

• Compact & Capable: Powered by a 500W motor (750W Peak) for reliable urban commuting and fun.
• Perfect for All Ages: A lower 28.7" seat height and a recommended rider height starting at 3'11" make this accessible for everyone.
• Steady Traction: 16" x 4.0" fat tires provide excellent stability and grip on various terrains.
• Reliable Stopping Power: Equipped with front and rear mechanical disc brakes for consistent safety.
• Lightweight Design: At just 65.7 lbs, it's easier to handle and transport while maintaining a sturdy steel frame.

---

Technical Specifications

Top Speed	20 mph
Range	25 miles
Motor / Peak Power	500W / 750W
Battery	499Wh (48V 10.4Ah)
Charge Time	5–6 hours
Brakes	Mechanical Disc Brakes
Tires	16" x 4.0" Fat Tires
Vehicle Weight	65.7 lbs
Weight Limit	220 lbs
Dimensions (L*W*H)	56" x 27" x 38.6"

---

Sizing & Fit Guide

Seat Height	28.7"
Recommended Rider Height	3'11" and up

Standard Package: 1x Macfox Electric Bike 1x Headlight 1x Taillight 1x Battery 1x Charger 1x Installation Tools 1x User Manual Optional accessories (not included): Bag One extra battery
